    drogheria mcd4
    all purpose
    Our Plus

    Stepless Micrometric Regulation System (patented by Eureka)

    Easy Setting System

    "High Speed" Maintenance

    Blow Up System

    All-Purpose grinder

    New coffee channel with bag holder

    Aluminium body and base

    certifications
    CECSACSASanitation
    download drogheria mcd4 - user manual.pdf
    info request
    • Grey
    • Grey
    Technical specifications
    BURRS
    Type flat
    Diameter 65 - 75 - 85 mm
    Material Hardened steel
    ENGINE
    Traction Direct
    Rpm
    1290 (65 mm burrs)
    1430 (75 mm burrs)
    1430 (85 mm burrs)
    Power absorbed
    450 watt (65 mm burrs)
    750 watt (75 mm burrs
    750 watt (85 mm burrs)
    Feeding Single or three-phase
    VARIOUS
    Typology Manual
    Stepless micrometric adjustment Yes
    Bean hopper capacity 1,4 kg
    Productivity (g/s)
    3 - 4 Espresso 4 - 5 Brew (65 mm burrs)
    5,5 - 6,5 Espresso 7,5 - 8,5 Brew (75 mm burrs)
    9,5 - 10,5 Espresso 12,5 - 13,5 Brew (85 mm burrs)
    DIMENSIONS
    Height 645 mm
    Width 184 mm
    Depth 267 mm
    Weight
    11,5 kg (65 mm burrs)
    14 kg (75 mm burrs)
    14,2 kg (85 mm burrs)
    available colours

    standard colours

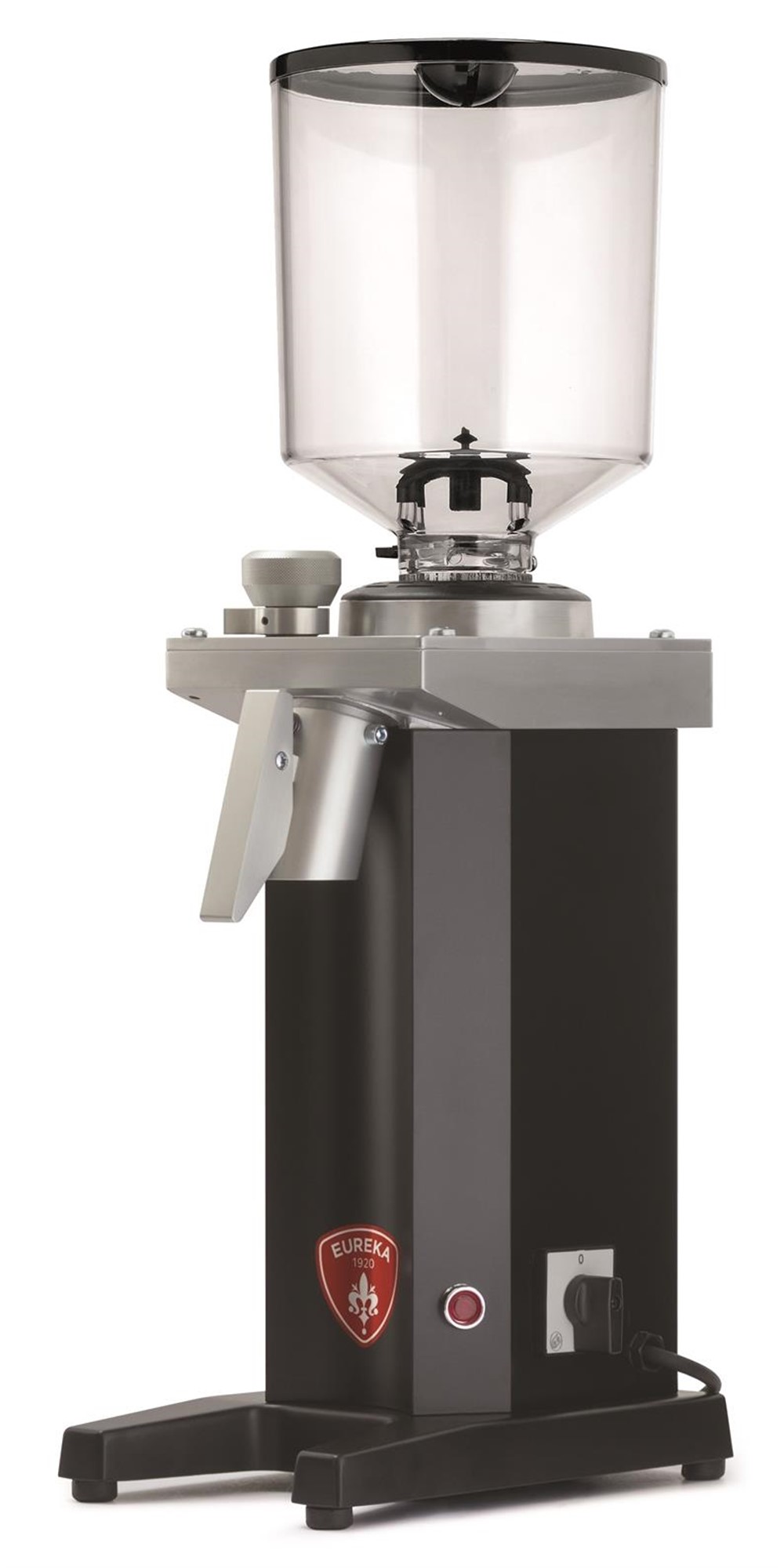

    matt black

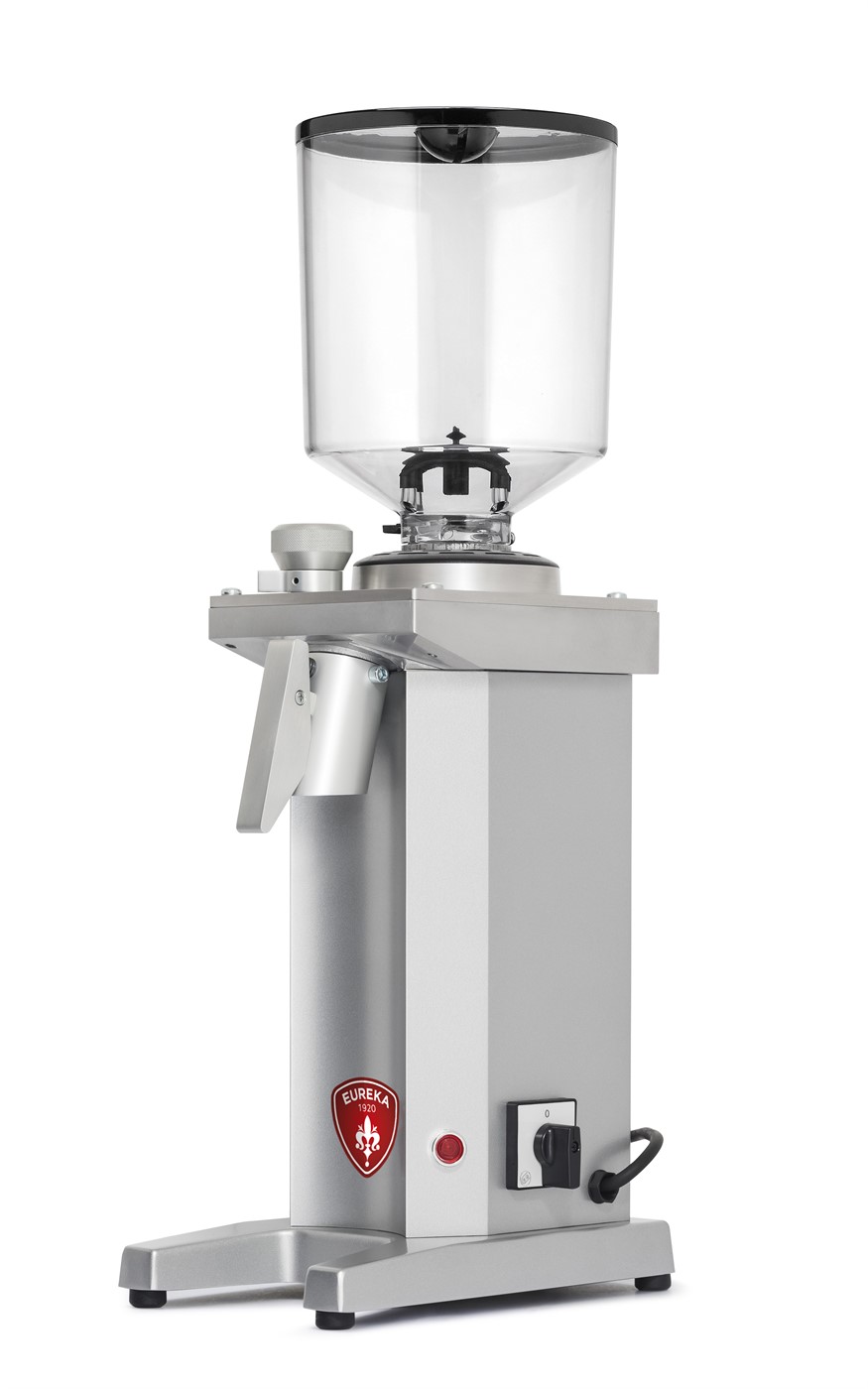

    grey
